User Manual for Teradek OMOD | AKS XLR2 Cage and Handle Kit Click to enlarge the picture
Contents of the user manual for the Teradek OMOD | AKS XLR2 Cage
- Product category: Camcorder Supports & Rigs Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Camcorder Supports & Rigs
|
User manual for the Teradek OMOD | AKS XLR2 Cage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

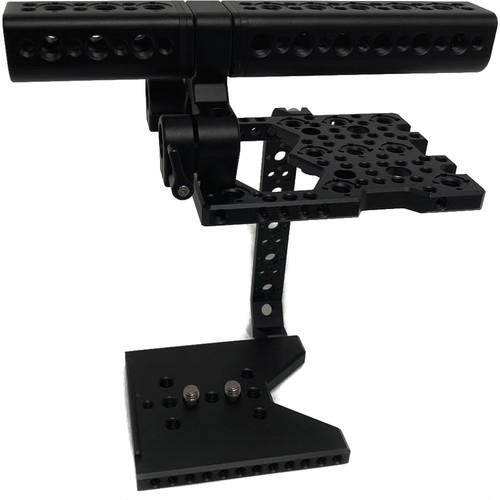

Product description The Teradek OMOD | AKS XLR2 Cage and Handle Kit consists of a full cage (DSMC2 Riser Plate, Side Arm, and Top Plate), plus a Standard Top Handle to get your RED DSMC2 camera rig-ready with 1/4"-20 and 3/8"-16 mounting points. Additional components from Teradek can be added or exchanged to customize your rig later on, so you can view this kit as a jumping-off point. See below for more information on the individual items included in this kit. - OMOD | AKS DSMC2 Riser Plate The Teradek OMOD | AKS DSMC2 Riser Plate lifts the DSMC2 camera body to the correct height for compatibility with 19mm and 15mm studio rod systems. Two 3/8"-16 screws are included for securing the plate to the camera base. Once secured, your DSMC2 camera will correctly fit RED, Wooden Camera, Element Technica, and OFFHOLLYWOOD bridge plates. 1/4"-20 threads are placed around the plate for 15mm LWS rod clamps from Element Technica and Wooden Camera or as convenient accessory mounting points. UPC: 705911773011
- OMOD | AKS Extended DSMC2 Top Plate Version B The Teradek OMOD | AKS Extended DSMC2 Top Plate Version B is a low-profile 5.2"-long top plate for RED DSMC2 cameras with OMOD gear. The design of the plate fits around the OMOD COMMAND module's antennas and won't interfere with LCD touchscreen contacts. It also features a pogo pin passthrough for connecting a start/stop trigger handle. 1/4"-20 and 3/8"-16 threads are available for securing accessories and articulating arms. The 3/8"-16 threads, in particular, have ARRI registration notches for compatibility with ARRI rig accessories. UPC: 705911773066
- OMOD | AKS Wide Side Arm The Teradek OMOD | AKS Wide Side Arm joins the OMOD DSMC2 Riser and a DSMC2 Top Plate to create a full camera cage. 1/4"-20 and 3/8"-16 threaded holes can be used for convenient accessory mounting on the side of the camera. The 3/8"-16 threads have ARRI registration notches for compatibility with ARRI rig accessories. The wide design of this arm will clear the SSD module on the operator side of the camera. UPC: 705911773028
- OMOD | AKS Standard Handle Kit Get a firm grip on your camera with the Teradek OMOD | AKS Standard Handle Kit. Consisting of the 15mm Rod Clamp Riser plus long and short handle extensions, you have the building blocks of a useful top handle. Additional extensions can be attached to the Handle Kit for further customization. UPC: 705911773301
In the Box Bundle Items OMOD | AKS DSMC2 Riser Plate ewztwqwcaz OMOD | AKS Extended DSMC2 Top Plate Version B OMOD | AKS Wide Side Arm OMOD | AKS Standard Handle Kit - OMOD | AKS 15mm LWS Rod Clamp Riser for Top Handle
- OMOD | AKS Back Riser for Top Handle
- OMOD | AKS Top Handle Short Extension
- OMOD | AKS Top Handle Long Extension
